10” BLDC Benchtop Table Saw [TH]

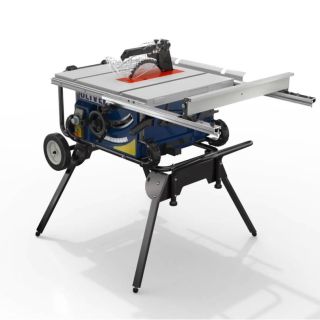

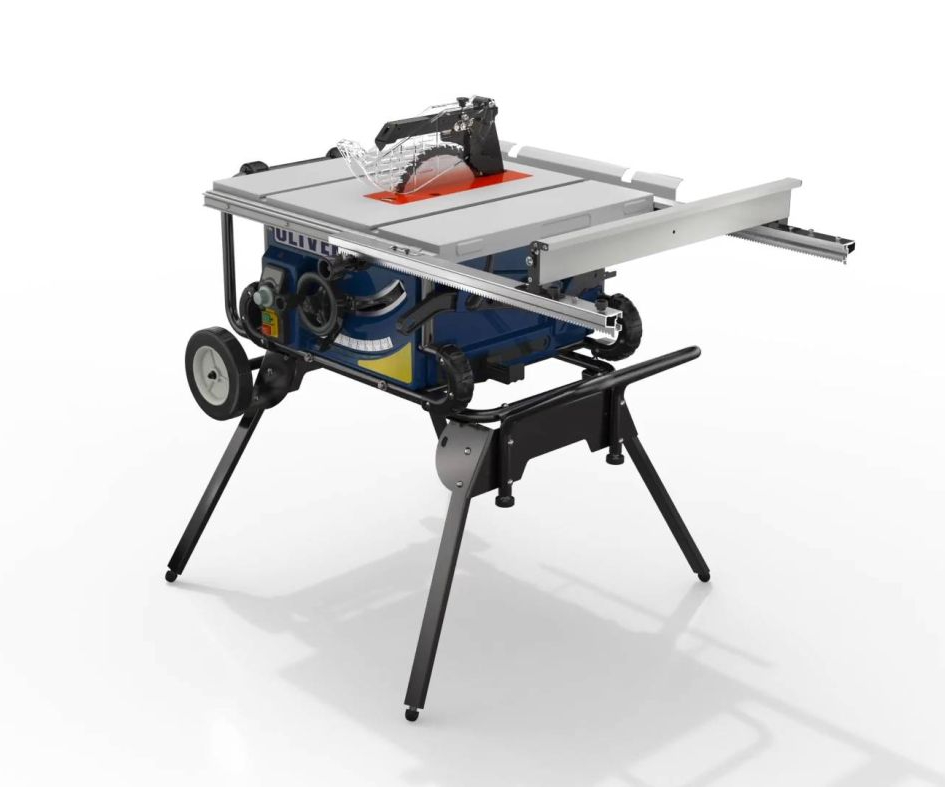

10” BLDC Benchtop Table Saw
- Quick Elevation up and down.
- Overload Protection prevents motor damage and protects the blade if it is blocked.

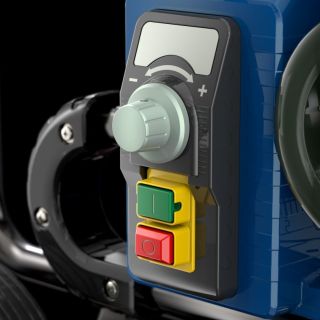

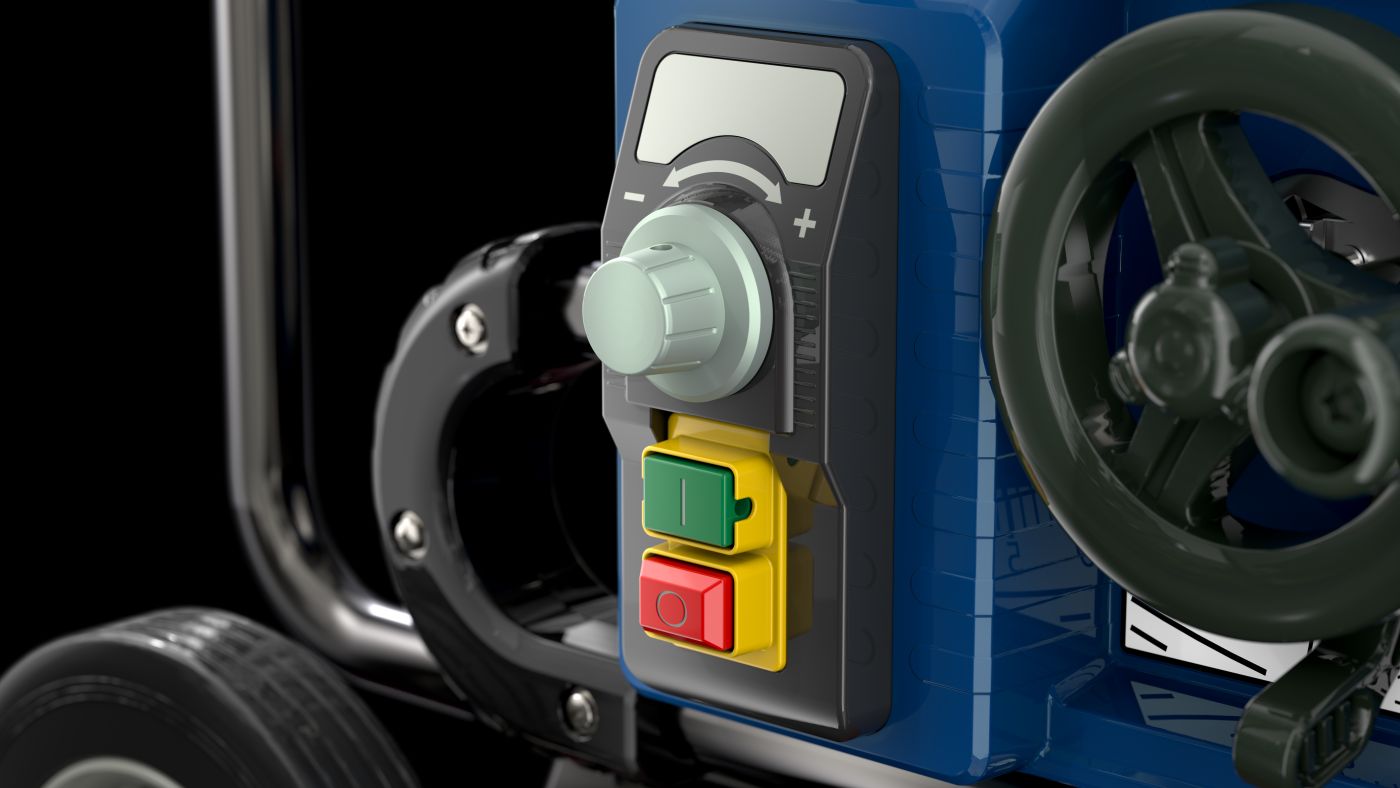

- Variable Speed Adjustment Knob multi-speeds with easy adjustment knob.
- Magnetic Switch prevents unwanted start after power interruption.
- L Shape Rip Fence assists thin stock cutting.
- Tool Storage handy to store Miter Gauge, Riving Knife, Blade Wrench and Anti-Kickback Pawl.
- Spindle Lock for quick blade replacement.

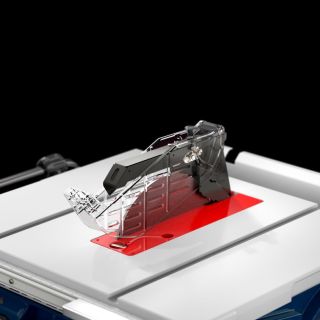

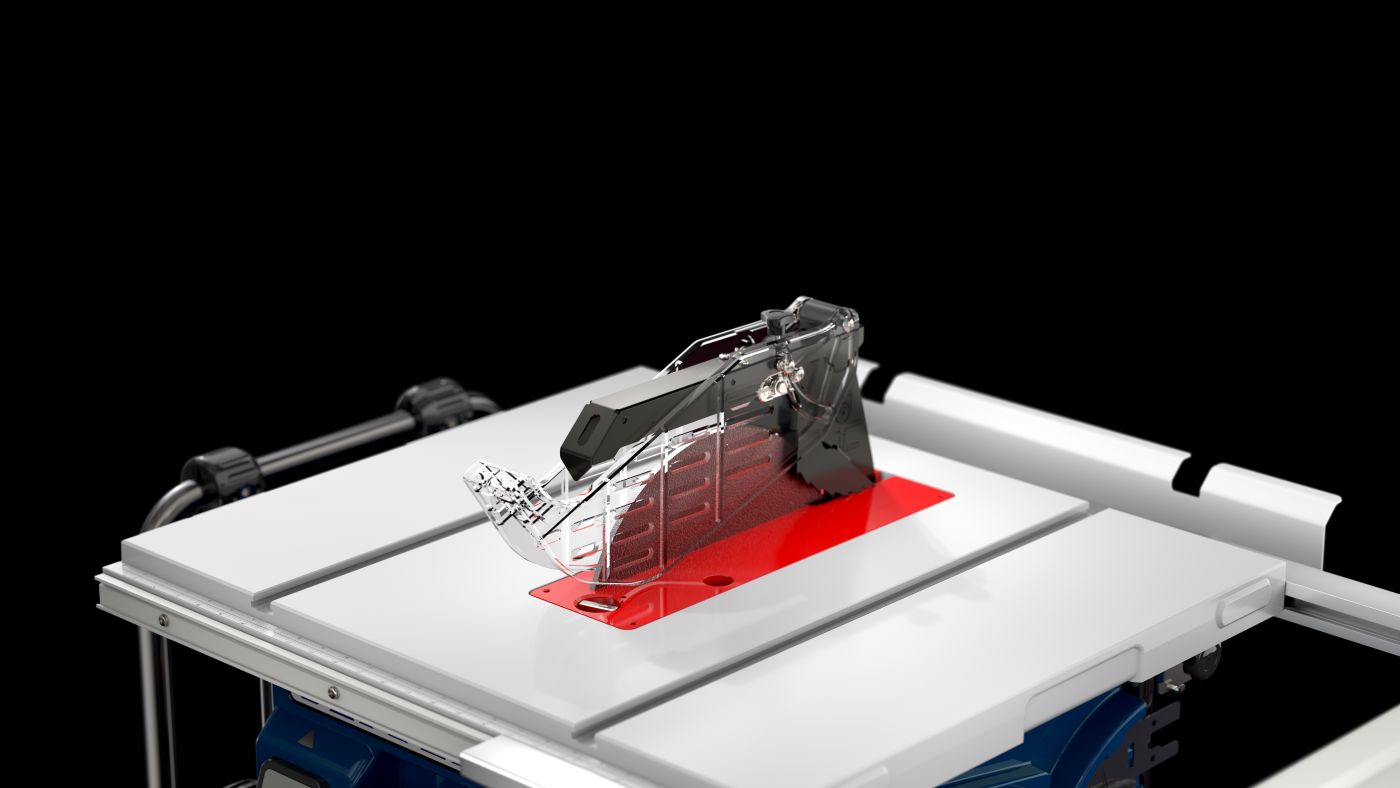

- Quick Release Blade Guard for changing Blade to Riving Knife easily.

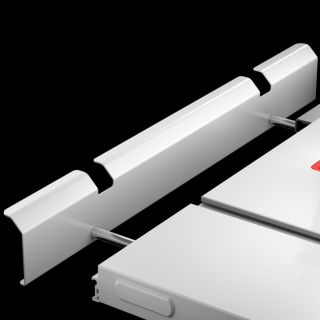

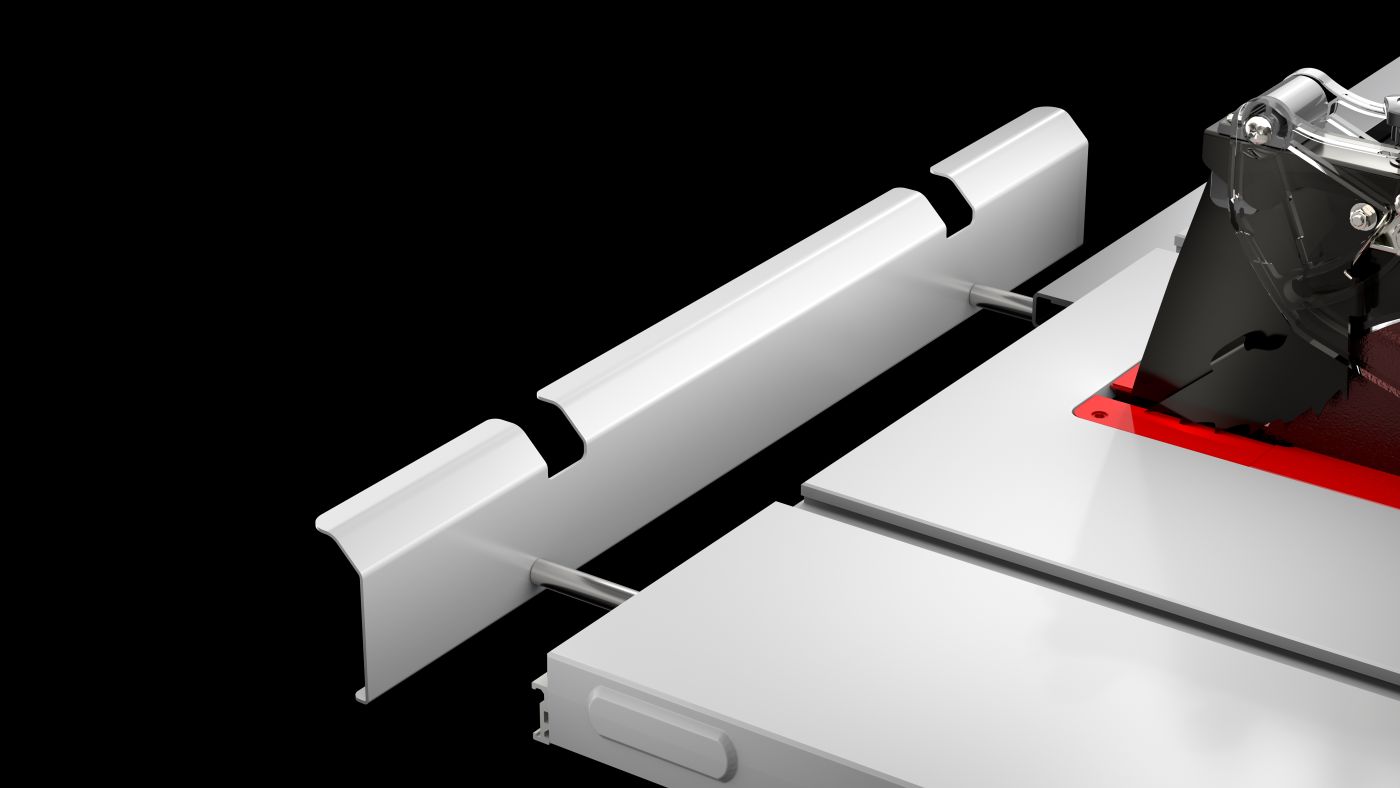

- Rear Extension Wing to support heavy wood pieces safely.
- Sanding Disc can be quickly installed onto the Saw and transformed into a Disc Sander by simply replacing the saw blade with a sanding disc. Applicable from 45° to 90°.
10” BLDC Benchtop Table Saw
| SPECIFICATIONS | |
|---|---|
| Brushless Motor | 2HP 120VAC 50/60 HZ |
| Blade Diameter | 10” │ 254mm |
| Rectangular Table Insert | Zero Clearance |
| Dado Diameter | 8” │ 203.2mm |
| Dado Blade Set Max. Width | Up to 13 ̸ 16” │ 21mm |
| Max. Depth of Cut | Blade at 90° 3 1/8” │ 79mm |
| Max. Depth of Cut | Blade at 45° 2 1/4” │ 57mm |
| Max. Rip Right of Blade | 24” │ 610mm |
| Arbor | 5/8” │ 15.875mm |
| Arbor Variable Speed | 1,700 ~ 5,000RPM |
| Arbor Tilt Range | 0° ~ 45° to left |
| Table Material | ADC12 |
| Table Height | 13.78” │ 350mm |
| Table Dimensions | 25.2”x22.44” │ 640x570mm |
| Dust Port Diameter | 2.5” │ 63.5mm |
| New Weight | 77.16lbs │ 35kgs |
