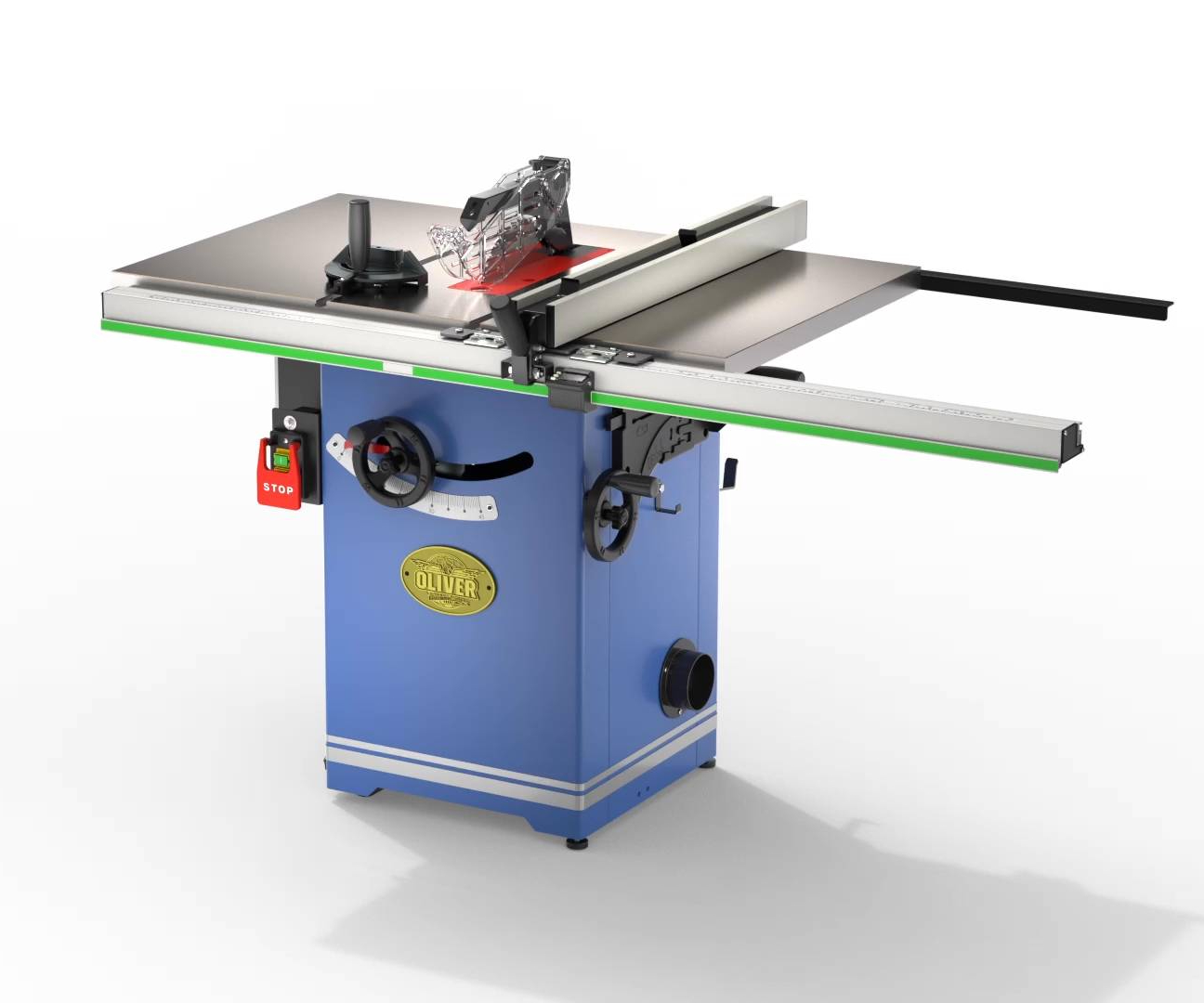

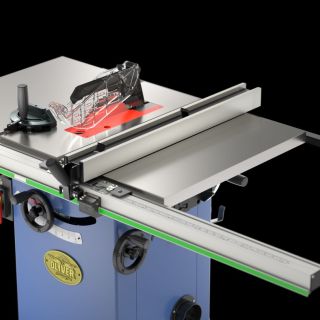

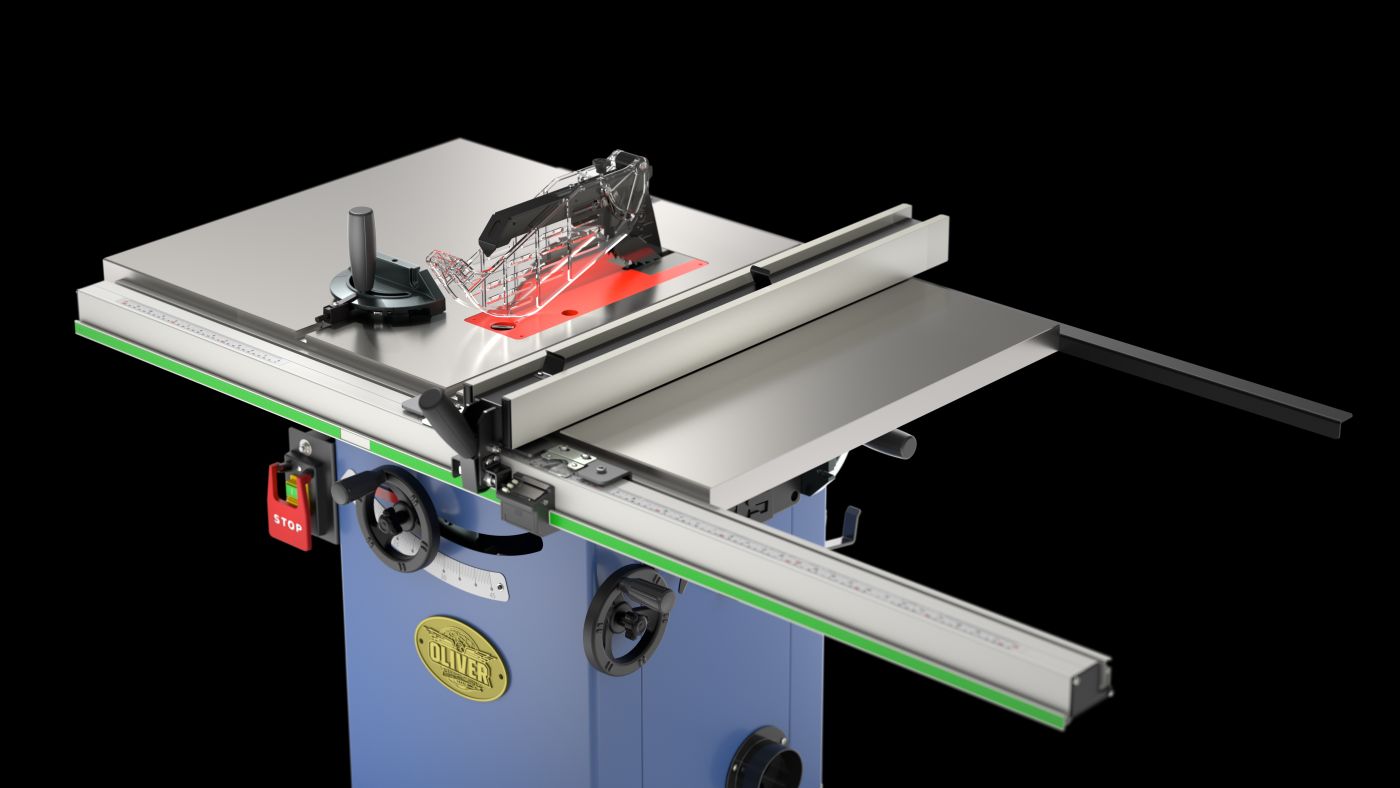

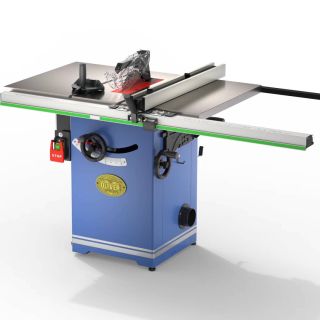

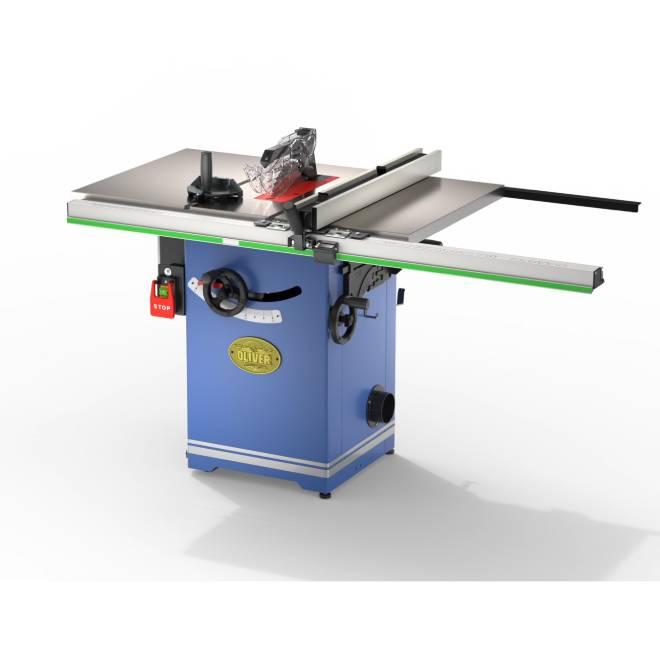

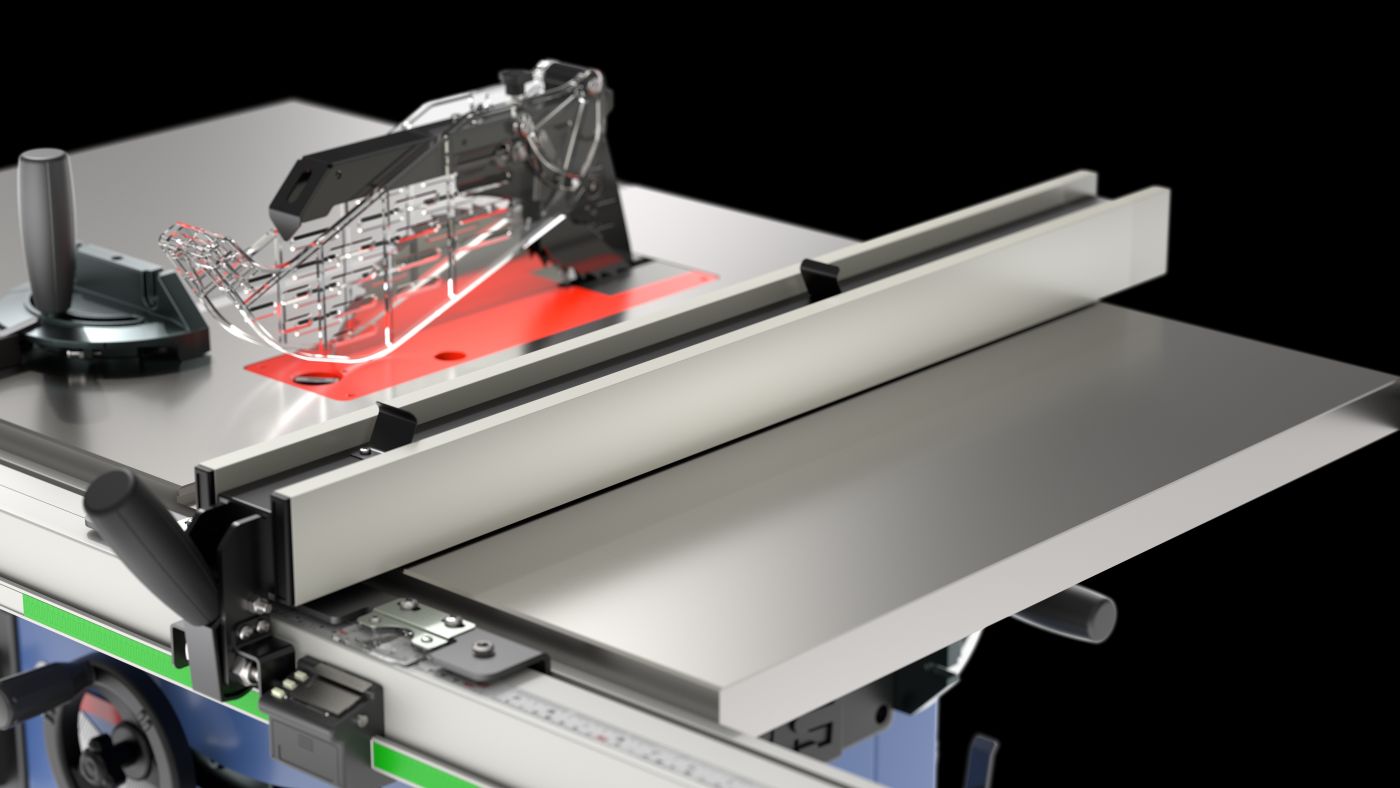

10” Cabinet Table Saw [TH56]
10” Cabinet Table Saw
Geetech 10” Cabinet Table Saw powerful than contractor saws has met NEW IEC compliance and is CSA/UL listed professional power tool. Its Blade Guard Release is faster than new IEC requirement. Rectangular Insert design makes it easier for customizing zero clearance Standard Insert and Dado Insert. For optimal dust collection, the internal structure is equipped with Dust Shroud for connection to a dust collector, that is Dust Shroud moves along with the Blade as the Blade raises up and lowers down. What’s more, the 10” Hybrid Saw is another professional power tool to choose from our Table Saw Series.
10” CABINET SAW
| SPECIFICATIONS | |
|---|---|
| Motor | 3HP 230V 6HZ 1PH |
| Blade Diameter | 10” |
| Saw Blade | 40T |

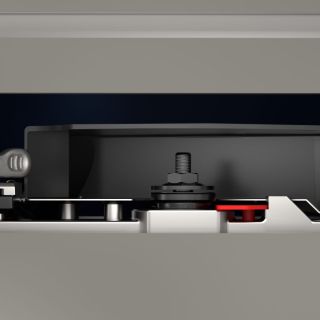

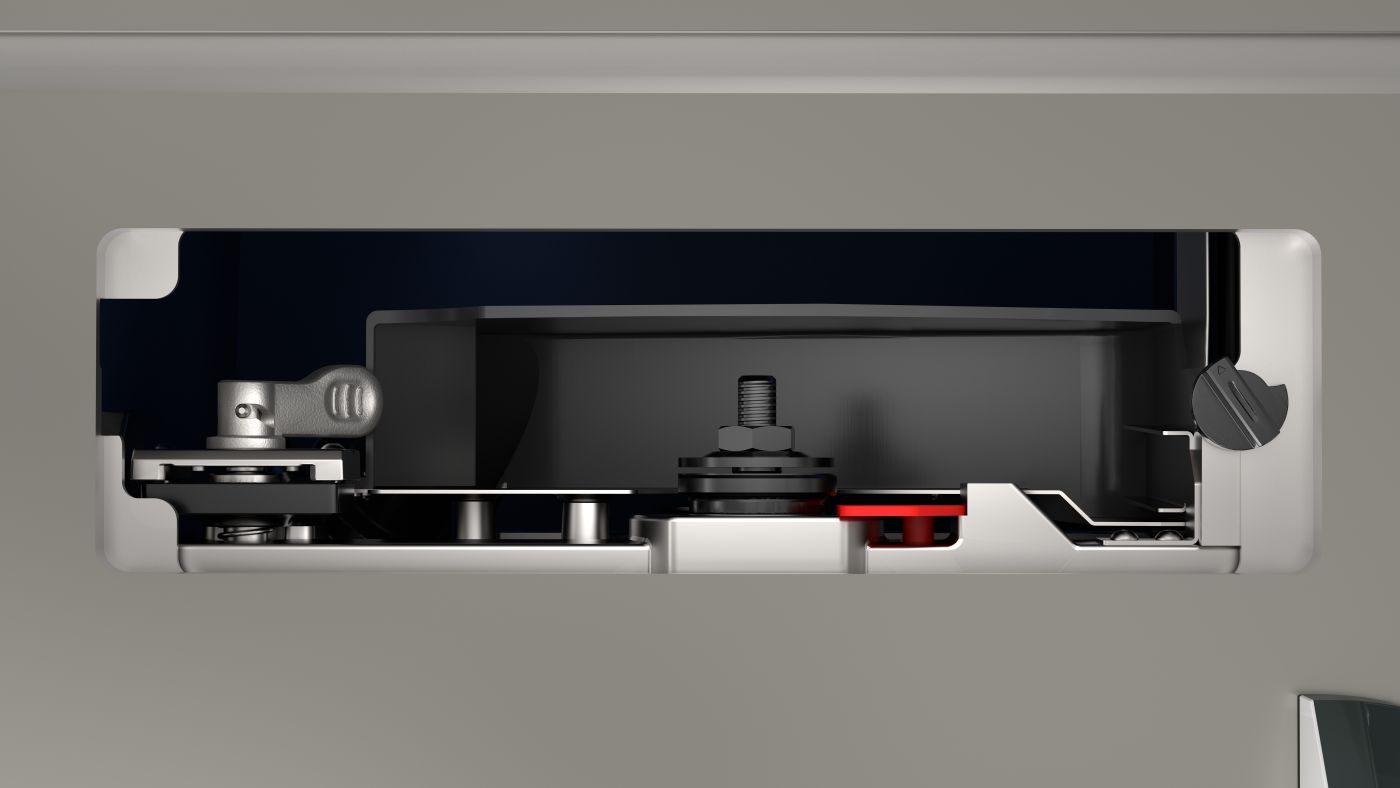

| Rectangular Table Insert | Zero Clearance |
| Dado Blade Set | Max. Width of 13 ̸ 16” |

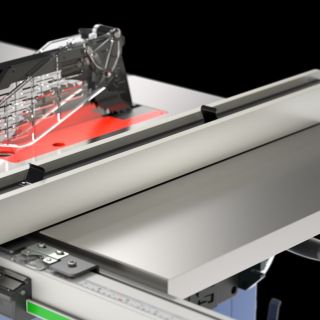

| Fence | with DRO |
| Max. Depth of Cut | Blade at 90° 3 1/8” |
| Max. Depth of Cut | Blade at 45° 2 1 ̸ 8 ” |
| Max. Rip Right of Blade | 52” |
| Max. Rip Left of Blade | 12” |
| Arbor | 5/8” |
| Arbor Speed | 4,000RPM |
| Arbor Tilt Range | 0° ~ 45° to left |
| Table Height | 35” |
| Table Dimensions | 20”x27” |
| Table with Extension Wings | 44”x27” |
| Cast Iron Extension Wing | 12” |
| Extension Table | Right Side |
| Dust Port Diameter | 4” |
| New Weight | 300lbs / 136.1kgs |
| FEATURES |
|---|
| New IEC Compliance; CSA/UL listed |
| TEFC Motor |
| Quick Bevel Adjustment |
| Spindle Lock for easy Blade replacement |
| Faster Quick Blade Guard Release than IEC requirement |
| Dust Shroud moves simultaneously as Blade elevates |
| Built-in Tool Storage |
| Built-in Mobile Wheels |
