12.5” Benchtop Planer [PG19]

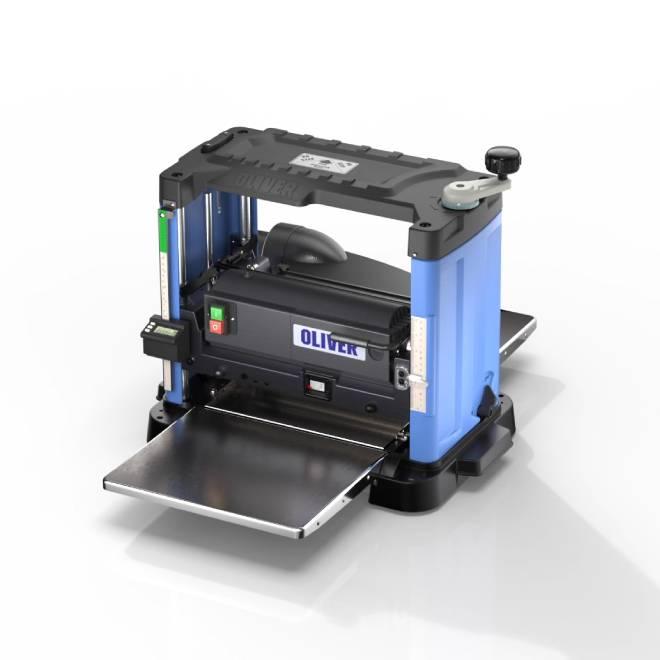

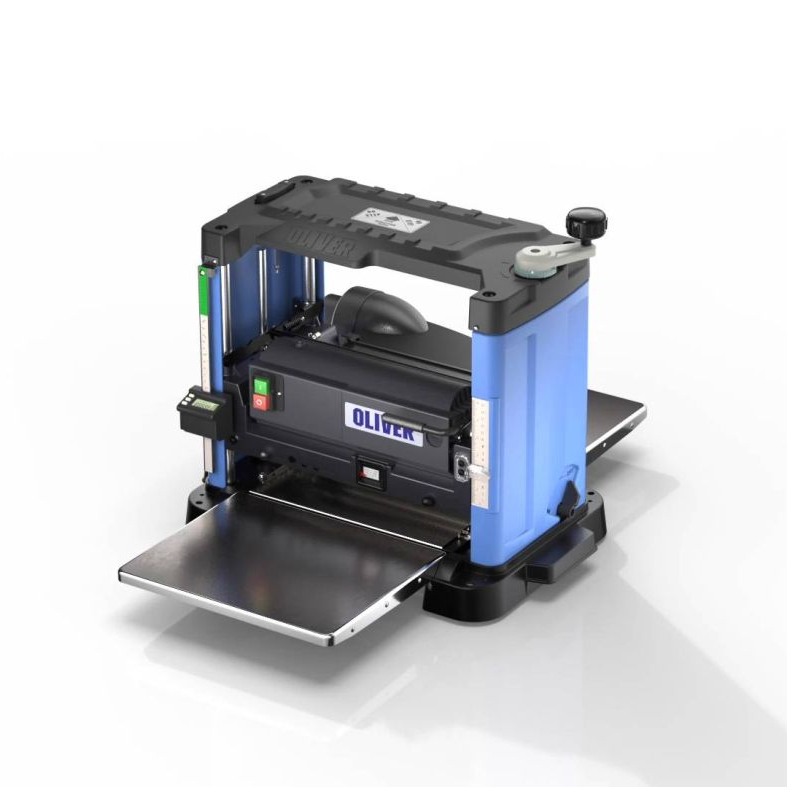

12.5” Benchtop Planer
- Light Duty with stable cutting passes
- Easy to read Wixey DRO for elevation
- 2HP 120V 15AMP Motor with Magnetic Switch and overload protection.
- Foldable extension wings
- Feed speed: 26 FPM
- Max cutting height: 6”
- Max cutting width: 12.5”
- Min stock thickness: 5/32”
- Min stock length: 5”
- Helical cutterhead
12.5”Benchtop Planer
| SPECIFICATIONS | |
|---|---|
| Motor | Universal 2HP 120V 1ψ 15AMP |
| Cutterhead | 10,000 RPM |
| Max. Depth of Cut | 1.2mm (full width 12.5”) |
| Max. Depth of Cut | 2.3mm (half width 5.4”) |
| Dust Port Diameter | 4” |
| Table Size | 12.5” X 10.2” |
| Extension Wing | 11.2” extended |
| Digital Read Out | Elevation with Wixey DRO |
| Magnetic Switch | |
| Overload Protection | |
| Net Weight | 32kgs |
| FEATURES |
|---|

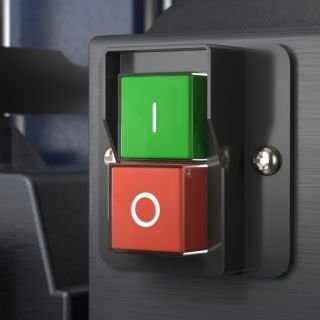

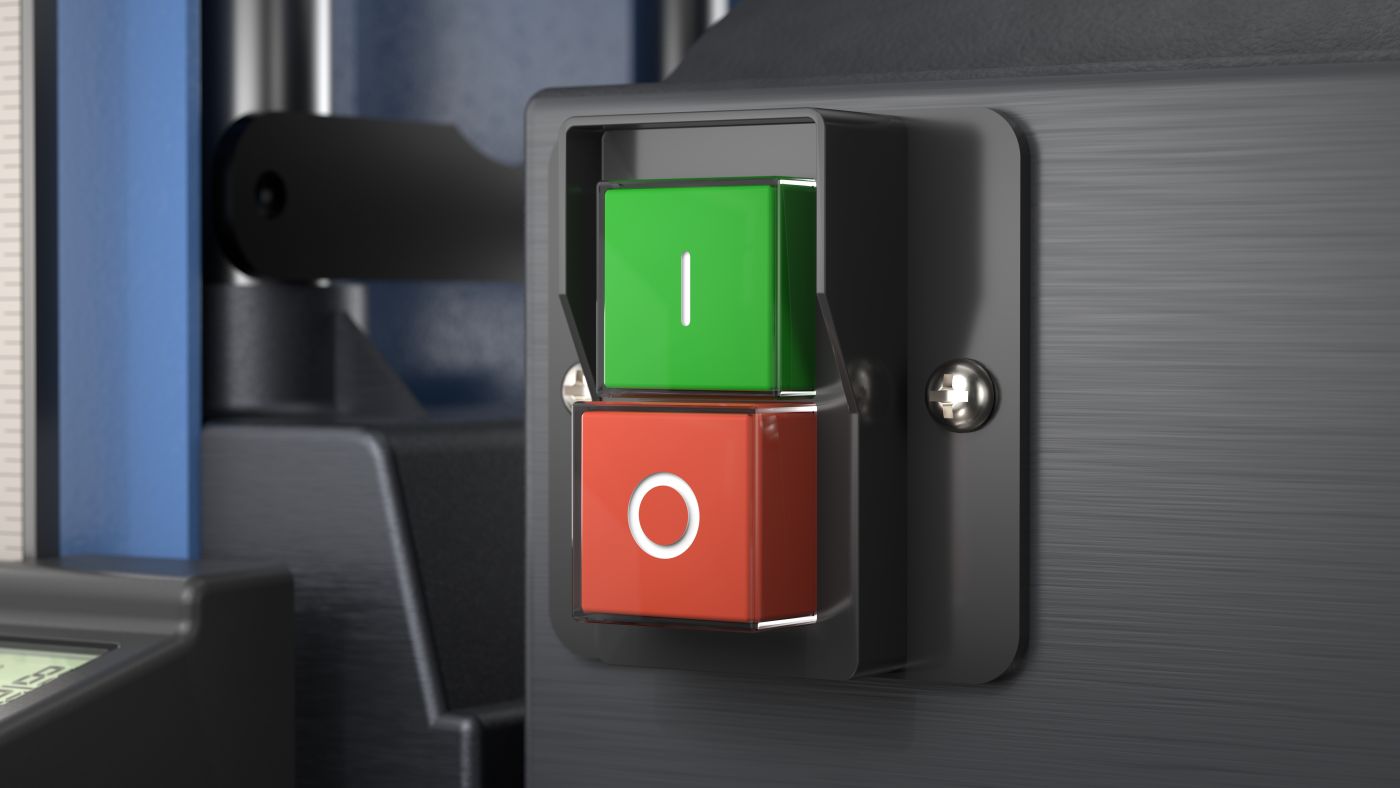

| 2HP 120V 15AMP Motor with Magnetic Switch and overload protection |

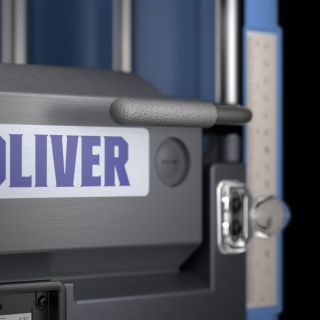

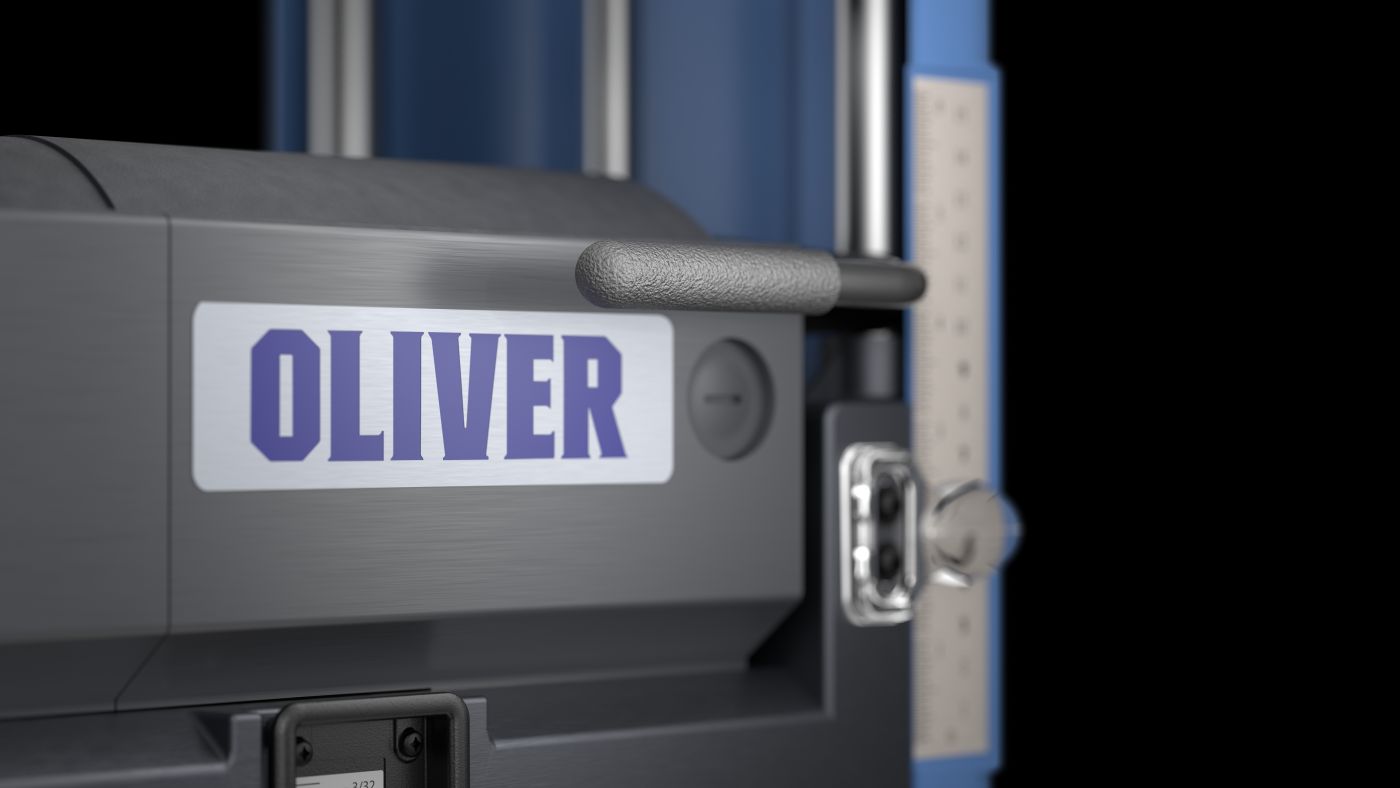

| Built in Carriage Lock |

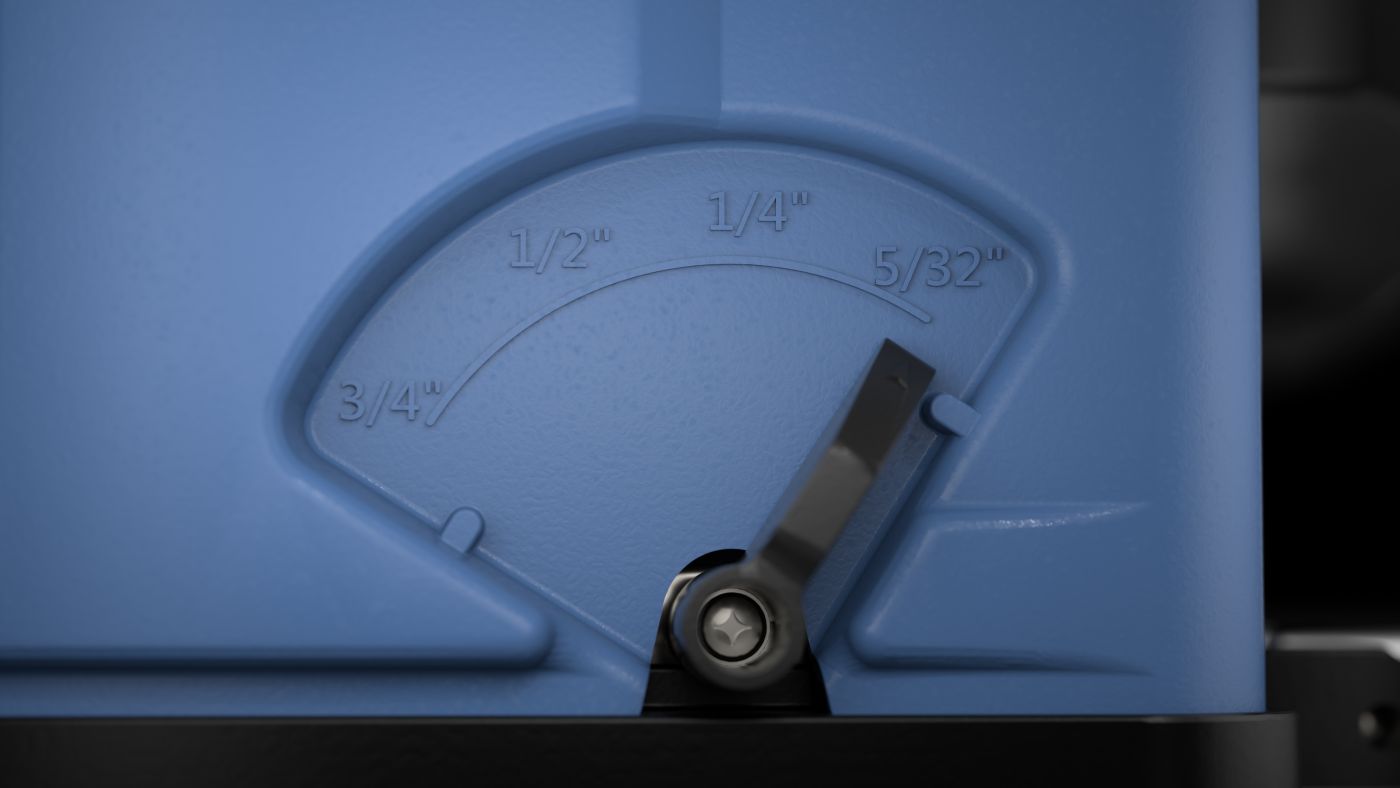

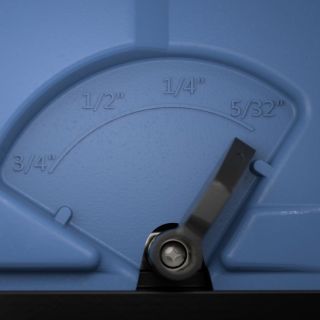

| Built in Depth Stop |
| Light duty with stable cutting passes |
| Easy to read Wixey DRO for elevation |
| Foldable extension wings |
| Feed speed: 26 FPM |
| Max cutting height: 6” |
| Max cutting width: 12.5” |
| Min stock thickness: 5/32” |
