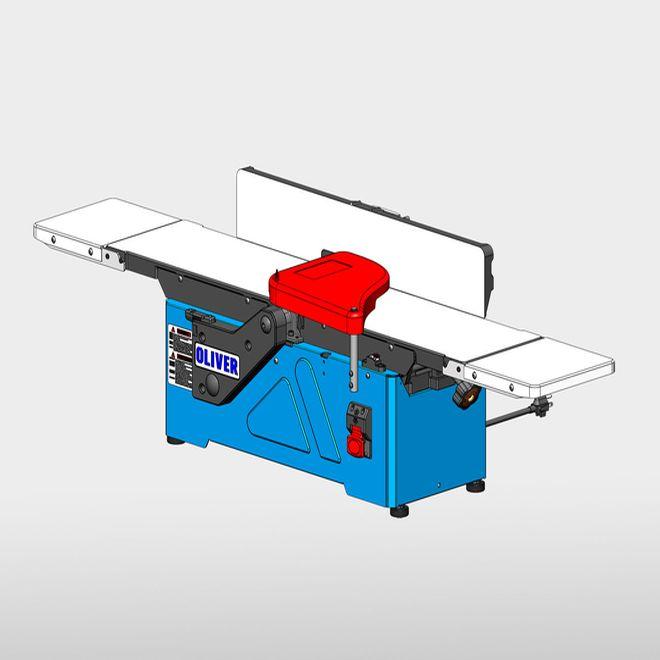

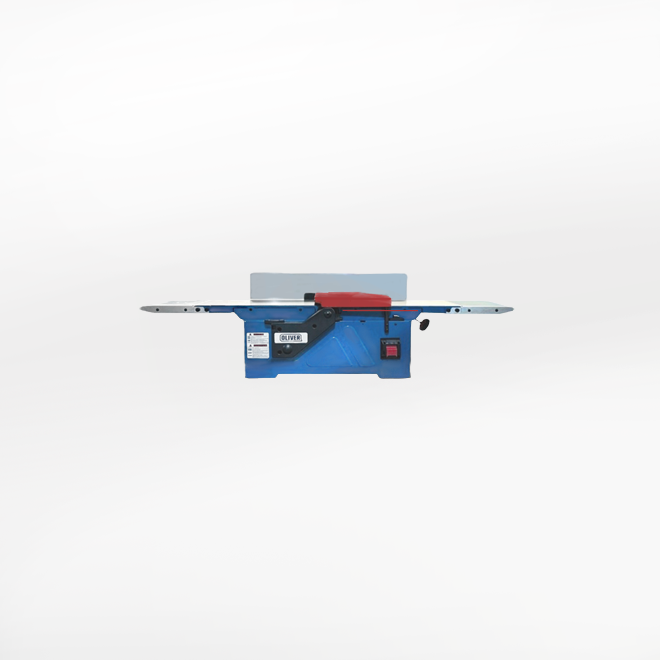

8” Benchtop Jointer [CT-8BJ]
DOWNLOAD
Benchtop JOINTER
| SPECIFICATIONS | ||
|---|---|---|
| 8” | 10” | |
| Motor | Universal 2HP 120V 1ψ 15AMP 50/60HZ |
Universal 2HP 120V 1ψ 15AMP 50/60HZ |
| Table Dimensions | 8” x 40” | 10” x 40” |
| Infeed Table Length | 20” | 20” |
| Outfeed Table Length | 20” | 20” |
| Maximum Depth of Cut | 1/8” | 1/8” |
| Maximum Cutting Width | 8” | 10” |
| Cutterhead Type | Helical | Helical |
| Cutterhead Speed | 10,000 RPM | 10,000 RPM |
| Cutterhead Size | 48 mm | 48 mm |
| Cutterhead with Blade | 50 mm | 50 mm |
| Fense Dimensions | 4.7” H x 27.5”L | 4.7”H x 27.5”L |
| Extension Wings | Sheet Metal 8” extended |
Sheet Metal 8” extended |
| Dust Port | 2-1/2” | 2-1/2” |
| Net Weight | 90.4 lbs / 41 kgs | 132.3 lbs / 60 kg |
| FEATURES |
|---|
| Parallelogram structure infeed table |
| Helical Cutterhead: 8”: 3 rows 21 inserts / 10”: 3 rows 27 inserts |
| Fence material: Cast Iron |
| Fence adjustment positive stops: + 45° and 90° |
| Built-in Dust Collection |
| Blade Guard for safety protection |
