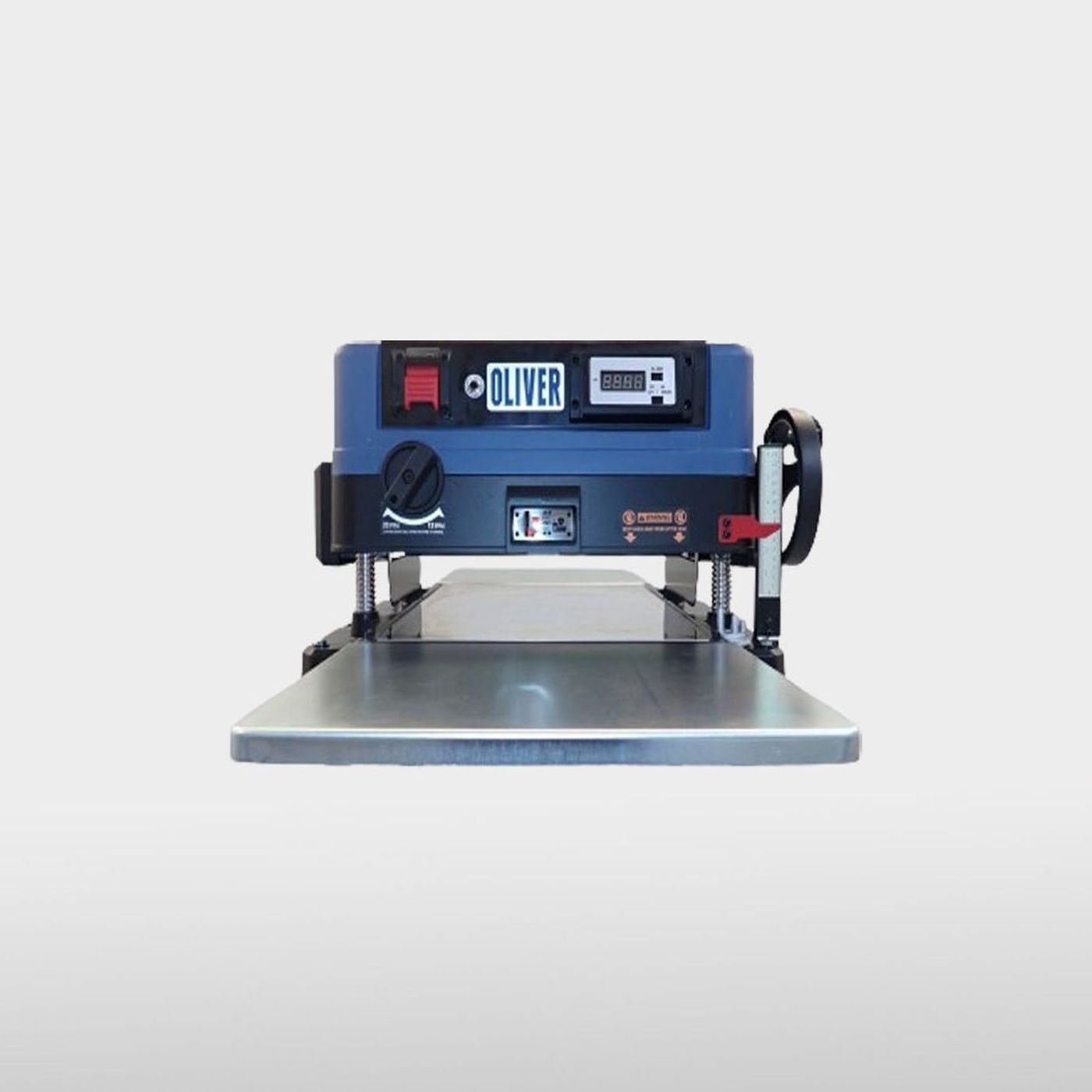

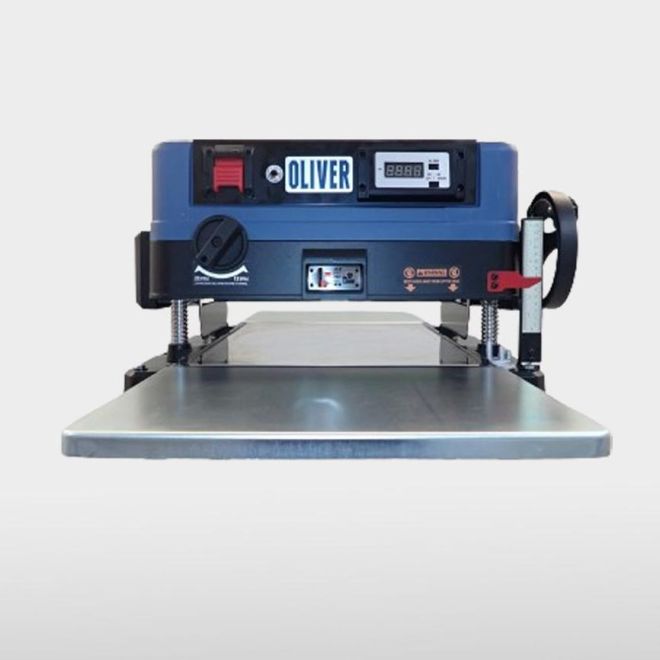

15” Benchtop Planer [CT-15BP]
DOWNLOAD
15”Benchtop Planer
SPECIFICATIONS | |
---|---|
Induction Motor | 2.5HP 230V 1ψ 12AMP |
Table Dimensions | 15” x 23” |
Maximum Depth of Cut | 1/8” (≦ 6.5”) 1/16” (≧ 6.5”) |
Maximum Cutting Height | 6” |
Maximum Cutting Width | 15” |
Minimum Stock Thickness | 3/16” |
Minimum Stock Length | 8” |
Feed Speed | 12 or 20 FPM |
Cutterhead Type | Helical 4 rows 40 inserts |
Cutterhead Speed | 5,600 RPM |
Dust Port | 4” |
Net Weight | 150 lbs / 68 kgs |
