Sander [CT-9108ES]
DOWNLOAD

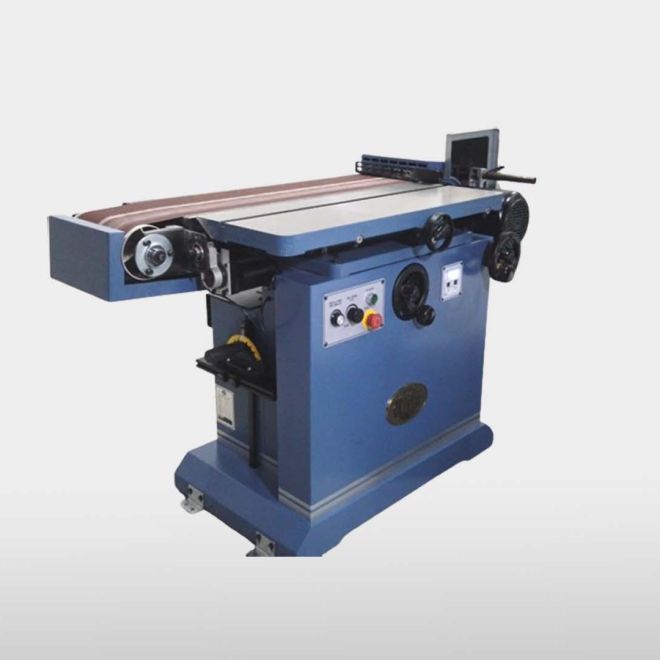

Oscillation Edge Sander
| SPECIFICATIONS | |
|---|---|
| Motor | 2HP 230V 3PH 60HZ 4P TEFC |
| Input Power | 2HP 230V 1PH 60HZ |
| Sanding Belt Size | 9” x 108” |
| Sanding Belt Tilt | 0° - 90° |
| Platen to support Belt | Graphite coated |
| Platen Size | 32” x 10” |
| Main Table Dimensions | 33” x 12” x 1-1/2” |
| Main Table Vertical Travel | 4” |
| Main Table Horizontal Travel | 4” |
| Side Table Elevation Travel | 6” |
| Base Dimensions | 30” x 20” |
| Drive Wheel | 8-1/2” Aluminum |
| dler Wheel | 5” Aluminum |
| Dust Port | 4” |
| Power Cord Length | 8” |
| Power Cord Gauge | 14AWG |
| Net Weight | 396.8 lbs / 180 kgs |
| FEATURES |
|---|
| Cast Iron Main Table with T-slot for Miter Gauge in desirable location |
| Sheet Metal Side Table: 6” Elevation Travel |
| Quick Release Lever: Sanding Belt quick installation on drums |
| Oscillation driven by DC motor and crank up/down structure |
| Auxiliary Fence to support workpiece when sanding at 90 degree |
| Start/Stop position: automatic revert to its position by Hall Sensor |
| Adjust Main Table height to utilize usage of Sanding Belt which lasts 3+ more life time |
| Micro Adjustment Knob to accommodate Sanding Belt length. |
