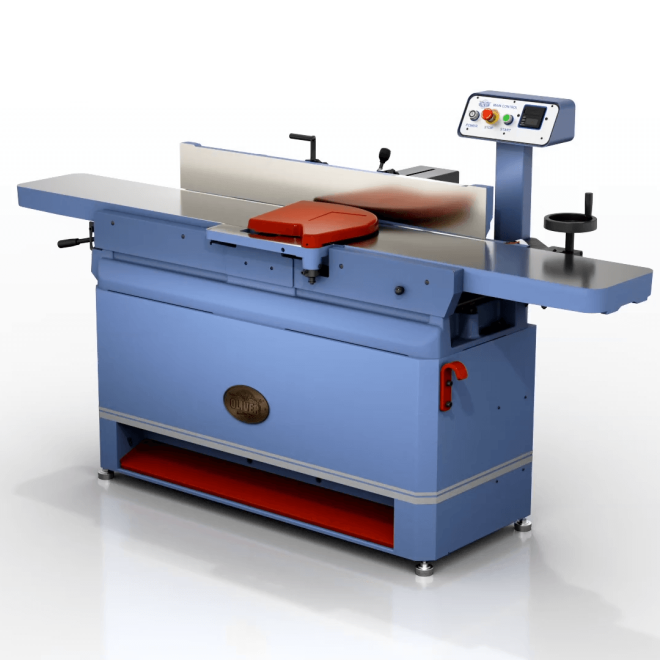

12” Parallelogram Jointer [CT-12J]
Parallelogram Jointer
- Parallelogram structure gives constant distance between Infeed/Outfeed Table and Cutterhead at all positions.
- Handwheel mechanism for easy Infeed Table adjustment.
- Micro adjustment for accurate Infeed Table height setting.
- DRO assures precise depth setting when lowering or raising Infeed Table.
- Shut off Paddle for quick power off.
12” PARALLELOGRAM JOINTER
| SPECIFICATIONS | |
|---|---|
| Induction Motor | 5HP 230V 1ᴪ |
| Table Dimensions | 12”x88” |
| Cutterhead | Spiral / 4” DIA |
| Cutterhead RPM | 5,500 (60HZ) |
| Max. Depth of Cut | 1/8” |
| Max. Rabbeting Capacity | 3/4” |
| Max. Cutting Width | 12” |
| Fence Dimensions | 6”x56” |
| Dust Port | 6” |
| Net Weight | 793.7lbs / 360kgs |
| FEATURES | |
|---|---|
| Infeed Table Micro Adjustment | √ |
| Table Height Adjustment | Handwheel Controlled Infeed Table Lever Controlled Outfeed Table |
| Infeed Table Depth Reading | Digital Readout |
| Fence Adjustment | Linear Adjustment System |
| Micro Fence Adjustment | √ |
| Quick Fence Adjustment Stops | 45° / 90° / 135° |
| Fence Positive Stops | ±45° and 90° |
| Built-in Mobile Wheels | √ |
| Shut off Mechanism | √ |
